Exhaust Primer

Exhaust Primer – Air Operated Primers

download Exhaust Primer catalogue

Exhaust Primers (EP) are air operated primers comprised of an Ejector and cast iron Adapter that has a cap and handle attached. Unit operates on low engine exhaust pressure or air pressure from other sources. When the exhaust valve (adapter cap) is closed, gases are directed through ejector, and water is drawn to pump by ejector vacuum.

  • *Note: When ordering an EP, ejector size is determined by engine displacement in cubic inches.
  • Example: displacement is 250 cubic inches; therefore you need an EP250-300. Adapter size is determined by size of exhaust tip and whether it is threaded or not.

  • exhaust primer

  • air operated primer

FEATURES

order_img

Simple design, no moving parts.

order_img

Cast iron adapters come in a variety of sizes, to be mounted on a plain or threaded exhaust ends.

order_img

Priming can be completed in 10 seconds to two minutes.

order_img

Suction lifts of 20 ft. may be obtained under typical conditions.

order_img

Units are designed to produce vacuum of 18 to 22 inches of mercury (Hg).









  • INSTALLATION & OPERATION OF PROTEK EXHAUST PRIMER

    1. Use adapter to attach ejector to engine exhaust stack.
    2. Pump discharge must be closed while priming. This can be done by installing a discharge check valve or hand operated gate valve.
    3. Install vacuum gauge and priming valve on priming line, between the valve and ejector.*NOTE: Vacuum gauge should indicate priming rate of 18-22 Hg
    4. After priming is completed, lay handle and brass cap 180 degrees from priming position to allow exhaust to escape.
  • MAINTENANCE

    • Before every use, check the unit for accumulated build-up of dirt or soot from the engine exhaust.
    • If vacuum gauge is not working, replace before using EP.
  • SAFETY & RECOMMENDATIONS

    • EPs will not work effectively on single cylinder or two cycle (two strokes) engines.
    • Installing a Tachometer on the engine to determine exact speed is useful.
    • Line air leaks may prevent priming.
    • EPs can be used on turbo engines, provided that the RPMs are kept between 1100 and 1200.
    • This information is set forth in general terms for the benefit of distributors, but it is advisable that distributors provide appropriate instruction to their customers.
  • Exhaust Primer – Parts

    STANDARD PARTS
    PART# DESCRIPTION
    *Ejector (See chart below for part numbers)
    *Exhaust Valve (See chart below for part numbers)
    *Adapter (See chart below for part numbers)
    E0008 ³/8 X ³/8 X ¼ Priming Tee
    E0022 Clamp
    E0323 Handle for Brass & Steel Caps
    E0333 Vacuum Gauge
    E0334 ⅜” FPT Brass Cock Valve
    X0E17 ⅜” NPT x 1” Close Nipple
    *Part numbers for the ejector, adapter, and exhaust valve vary due to the variety of customer needs.
    *Valve lever handle for steel caps available upon request using part number E0021 .
    EJECTORS
    PART# DESCRIPTION
    E0090 60/90 Ejector
    E0091 150/225 Ejector
    E0092 250/300 Ejector
    E0093 350/500 Ejector
    EJECTORS PARTS
    Venturi Gasket Nozzle Tip Nozzle Base
    60/90 E1379 E0315 E1369M
    150/225 E2715 No Gaskets Required E2315-A E2315
    250/300 E2925 No Gaskets Required E2315-B E2315
    350/500 E1384 E0141 E3940
    ADAPTERS
    PART# DESCRIPTION
    E0000 1″ Adapter
    E0001 1 ¼” Adapter
    E0002 1 ½” Adapter
    E0003 2″ Adapter
    E0004 2 ½” Adapter
    E0005 3″ Adapter
    E0006 3 ½” Adapter
    E0007 4″ Adapter

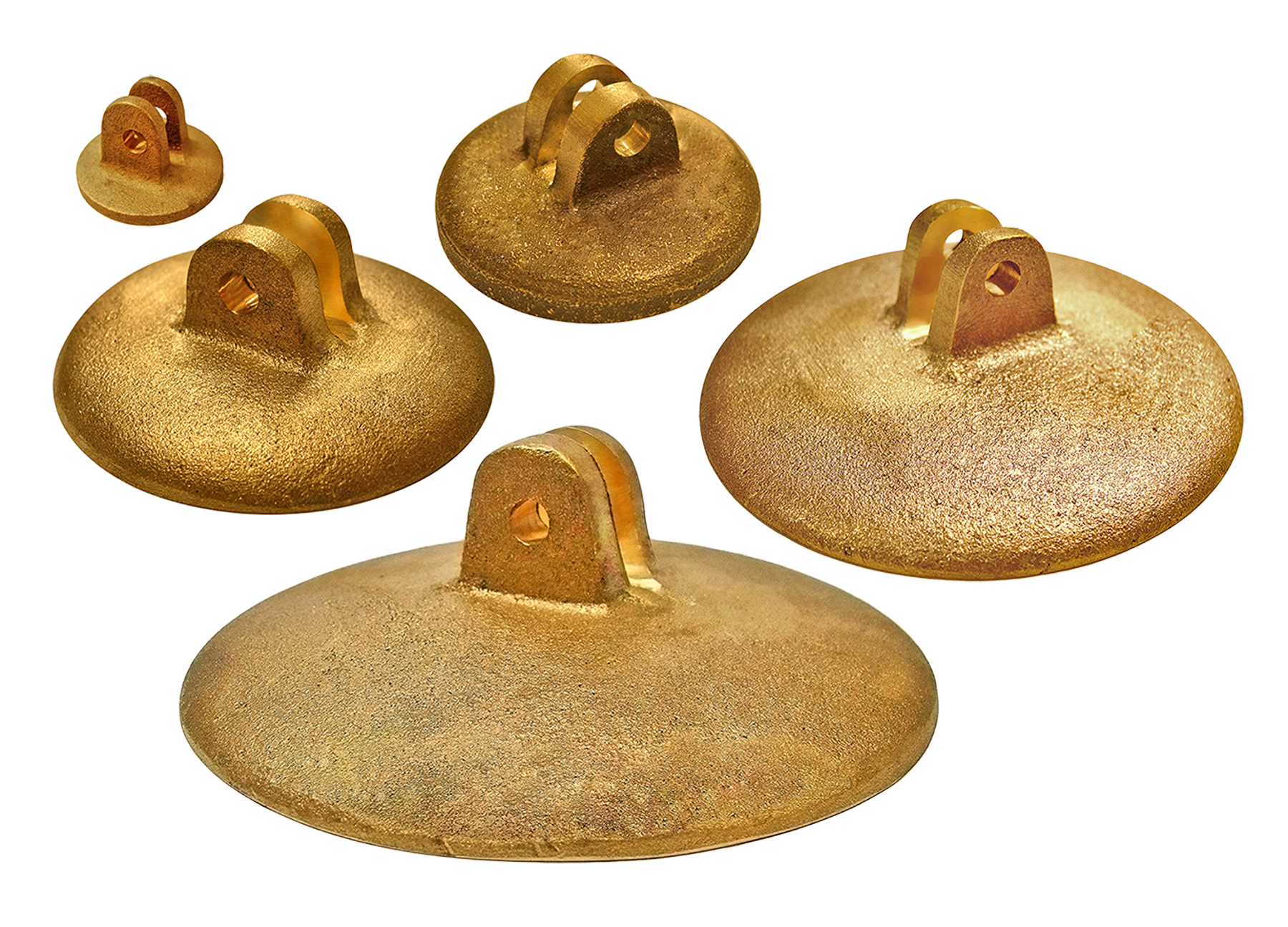

    EXHAUST VALVES
    PART# DESCRIPTION
    E0014 1 ¾ ” Brass
    E0015 2 ⅝
    E0016 3 ¼ ” Brass
    E0017 4 ¹/16
    E0018 5” Brass
    ACCESSORIES
    PART# DESCRIPTION
    X0D03 Hex Nut
    X0D04 ¼ -20 x 1″ Bolt
    X0D09 ¼ ” Split Lockwasher
    X0E12 10-24 x ½ ” Machine Screw (60/90 only)
    X0T27 ¼ #18 Internal Tooth Lockwasher
