Hand Diaphragm Pump

THE Hand Diaphragm Pump (HP) is a single-chamber air and liquid pump. The chamber has 2 opening flapper valves for suction and discharge. The diaphragm is actuated by the fulcrum handle bracket, air and/ or liquid is pulled into the chamber through the suction valve and expelled through the discharge valve. The Protek Hand Pump (HP) is portable, lightweight, and dependable.

FEATURES

order_img

Lightweight, durable and portable.

order_img

Ideal for priming pumps or as portable pump.

order_img

Large inlets allow transfer of many types of liquids.

order_img

Upon request, unit can be provided with a wooden base to optimize stability for tough primes.

order_img

Easily delivers up to 30 GPM.

order_img

Maximum leverage design facilitates easier pumping.









  • INSTALLATION & OPERATION

    1. Insert handle into fulcrum, making sure that fulcrum and handle holes align before inserting the fulcrum pin.
    2. Place pump on a solid foundation that is as close as possible to the fluid that is going to be pumped. (This positioning should make the suction line as short and direct as possible.)
    3. Attach suction pipes to the suction inlet and to the discharge outlet.
    4. Suction line must be sloped upward in order to provide continual feed into the pump.
  • SAFETY & RECOMMENDATIONS

    • To extend diaphragm and valve life, flush the pump with water after each use.
    • Replace the diaphragm and valves that show signs of wear, cracking or corrosion.
  • Troubleshooting

    If you cannot get the HP to prime, try one of the following:

    • Make sure there is no debris left inside where the valves are. Any debris can cause clogging.
    • Inspect the diaphragm for any tears or cracks.
    • Check the line for any blockage or loops. The line must be straight and not twisted in any way.
    • Check any strainers for blockage.
    • Check all sections of the suction line for air leaks.
    • If the eyebolt assembly becomes loose from the diaphragm assembly:
      1. Remove the bolts which connect the retainer ring and pump body so that the diaphragm assembly can be removed.
      2. Remove the diaphragm assembly and tighten the jam nut located on the underside of the diaphragm assembly until the bottom jam nut is even with the bottom of the eyebolt.
      3. Re-assemble the pump by reversing the dis-assembling process. *When re-assembling the pump, have the pump’s discharge side to your left, and make sure that the opening of the eyebolt is facing you.



  • Hand Diaphragm Pump – Parts

    HP700 PARTS HP900 PARTS DESCRIPTION
    H0701 H0901 Pump Body
    H0703 H0903 Retainer Ring
    H0704 H0904 Fulcrum

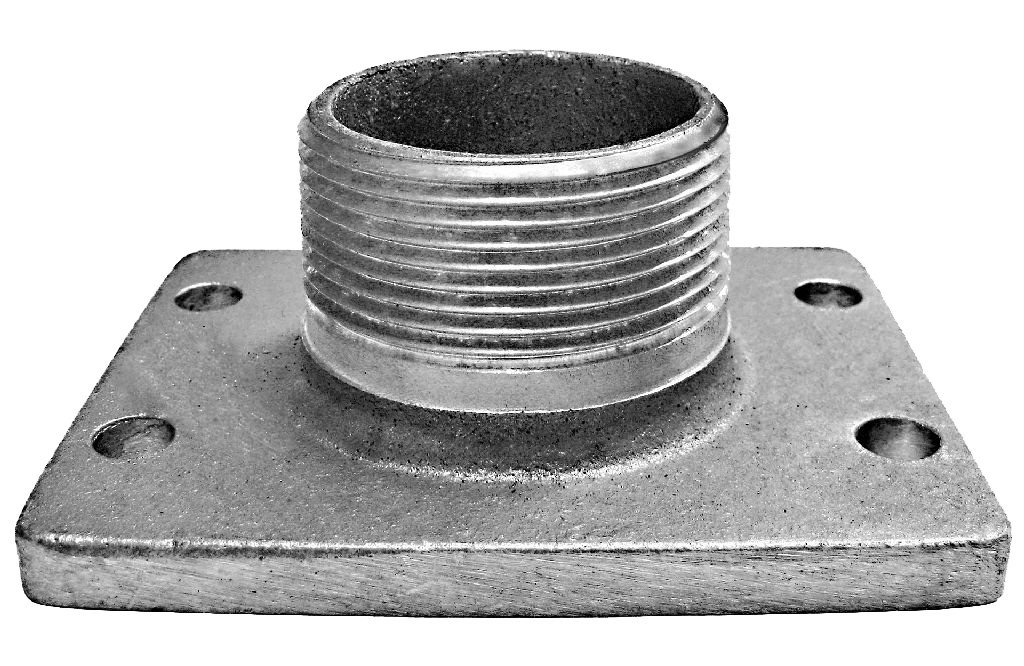

    H0705 H0905 Suction Flange
    H0706 H0906 Discharge Flange
    H0707C H0907C Diaphragm
    H0709 H0709 Diaphragm Plate (2 Req’d)
    H0710 NEO H0910 Discharge Valve
    H0714 NEO H0910 Suction Valve
    H0902 H0902 Fulcrum Pin
    H0912 (See Chart on Next Page.) H0912 (See Chart on Next Page.) Handle pipe w/ Grip Assembly
    D0347A D0347A Fast Pin Assembly
    X0019 X0019 Eyebolt Assembly
    X0D01 X0D01 Thumbscrew

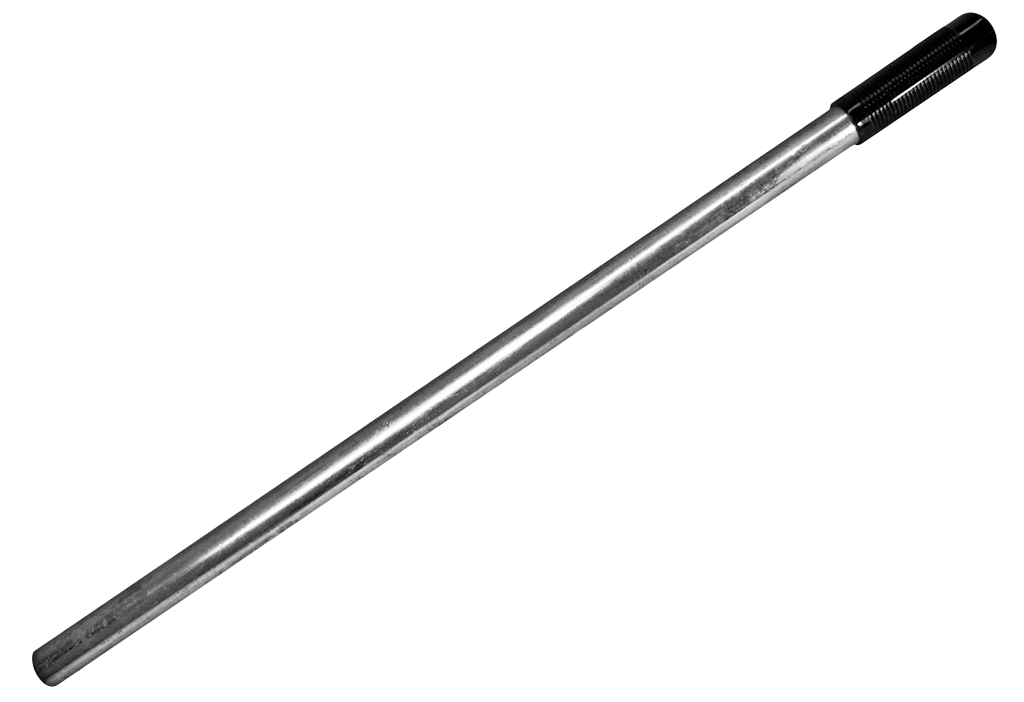

    HANDLE ASSEMBLY – #H0912
    PART# DESCRIPTION
    H0712 Grip
    H0911 Handle Pipe
    DIAPHRAGM ASSEMBLY – #H0707 & H0907
    PART# DESCRIPTION
    H0707C/H0907C Diaphragm
    H0709 Diaphragm Plate (2 Req.)
    X0019 Eyebolt w/ Nuts
    REPAIR KITS
    HP7RK HP9RK DESCRIPTION
    H0707C H0907C Diaphragm
    H0709 H0709 Diaphragm Plate (2 Req.)
    H0710 NEO H0710 NEO (2 Req.) Discharge Valve (Also Suction Valve for HP900)
    H0714 NEO Suction Valve (HP700/HP7RK Only)
    D0347A D0347A Clevis Pin Assembly
    H0902 H0902 Fulcrum Pin
    X0019 X0019 Eyebolt Assembly
    X0D11 X0D11 ³/8-16″ Jam Nut (2 Req.)
    X0H21 X0H21 5/16-18″ x 2″ HH Bolt (4 Req.)
    X0H31 X0H31 5/16-18″ x 1″ HH Bolt (8 Req.)
    X0H41 X0H41 5/16-18″ Nut (4 Req.)
    PRIMER CAPACITY CHART
    MODEL# INLET/ OUTLET CAPACITY MAXIMUM SUCTION LIFT MAXIMUM DISCHARGE HEAD APPROX. NET WEIGHT
    HP700 1-½” NPT ½ gal./Stroke 20 ft. 10 ft 15 lbs.
    HP900 2” NPT 1 gal./Stroke 15 ft. 10 ft. 18 lbs.
