Hand Diaphragm Pump
Hand Diaphragm Pump
download product catalogueTHE Hand Diaphragm Pump (HP) is a single-chamber air and liquid pump. The chamber has 2 opening flapper valves for suction and discharge. The diaphragm is actuated by the fulcrum handle bracket, air and/or liquid is pulled into the chamber through the suction valve and expelled through the discharge valve.
HAND DIAPHRAGM PRIMER FEATURES
Lightweight, durable and portable.
Ideal for priming pumps or as portable pump.
Large inlets allow transfer of many types of liquids.
Upon request, unit can be provided with a wooden base to optimize stability for tough primes.
Easily delivers up to 30 GPM.
Maximum leverage design facilitates easier pumping.
-
INSTALLATION & OPERATION
- Insert handle into fulcrum, making sure that fulcrum and handle holes align before inserting the fulcrum pin.
- Place pump on a solid foundation that is as close as possible to the fluid that is going to be pumped. (This positioning should make the suction line as short and direct as possible.)
- Attach suction pipes to the suction inlet and to the discharge outlet.
- Suction line must be sloped upward in order to provide continual feed into the pump.
-
SAFETY & RECOMMENDATIONS
- To extend diaphragm and valve life, flush the pump with water after each use.
- Replace the diaphragm and valves that show signs of wear, cracking or corrosion.
-
Hand Diaphragm Pump – Parts

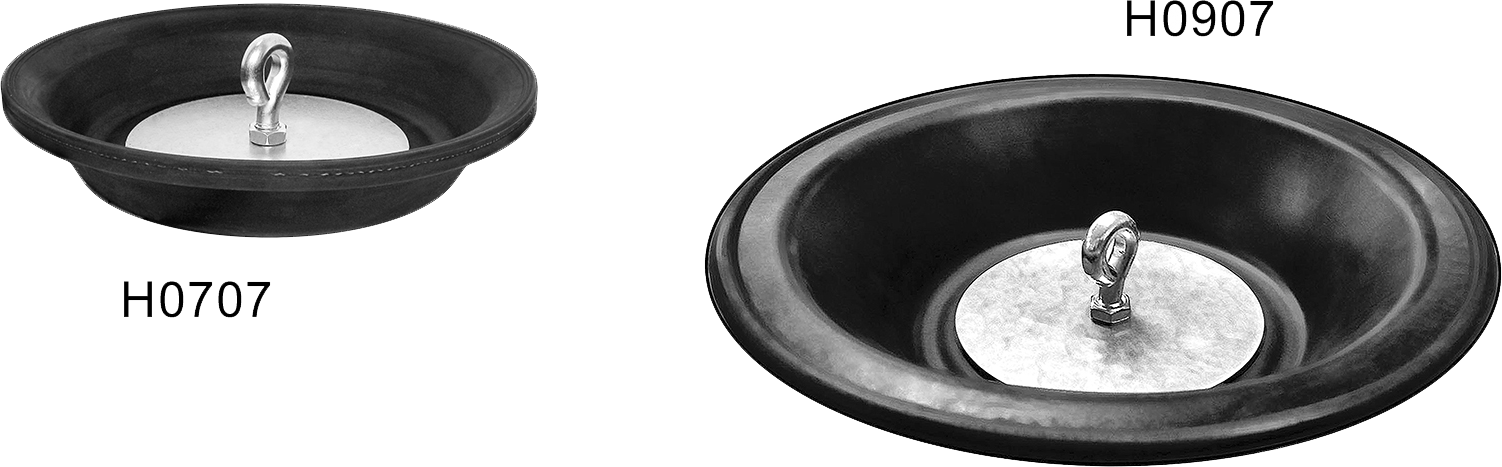

DIAPHRAGM ASSEMBLY – #H0707 & H0907 PART# DESCRIPTION H0707C/H0907C Diaphragm H0709 Galvanized Steel Plate (2 Req.) X0019 Eyebolts w/ Nuts
HANDLE ASSEMBLY – #H0912 PART# DESCRIPTION H0712 Grip H0911 Handle HP700 PARTS HP900 PARTS DESCRIPTION H0701 H0901 Pump Body H0902 H0902 Fulcrum Pin H0703 H0903 Retainer Ring H0704 H0704 Fulcrum H0705 H0905 Suction Flange H0706 H0906 Discharge Flange H0707C H0907C Diaphragm H0709 H0709 Diaphragm Plate (2 Req’d) H0710 NEO H0910 Discharge Valve H0714 NEO H0910 Suction Valve D0347A D0347A Fast Pin Assembly X0019 X0019 Eyebolt Assembly X0D01 X0D01 Thumbscrew REPAIR KITS HP7RK HP9RK DESCRIPTION H0707C H0907C Diaphragm H0709 H0709 Diaphragm Plate (2 Req.) H0710 NEO H0710 NEO (2 Req.) Discharge Valve (Also Suction Valve for HP900) H0707C H0907C Diaphragm H0714 NEO – Suction Valve (HP700/HP7RK Only) D0347A D0347A Fastpin H0902 H0902 Fulcrum Pin X0019 X0019 Eyebolt Assembly X0D11 X0D11 ³/8-16″ Jam Nut (2 Req.) X0H21 X0H21 5/16-18″ x 2″ HH Bolt (4 Req.) X0H31 X0H31 5/16-18″ x 1″ HH Bolt (8 Req.) X0H41 X0H41 5/16-18″ Nut (4 Req.)
-
